Instrument condenser microphone
Linear Phase CM 150 instrument condenser microphone has a beautiful appearance, it adopts Ф16
high quality headgrille and exact electric circuit of the transformer output. With the
characteristic of high sensitivity, low noise and cardioid directional, CM 150 can be widely used
to pickup sound of orchestra instruments, piano and other musical instruments.
Specifications:
Element: Ф16 back electret condenser

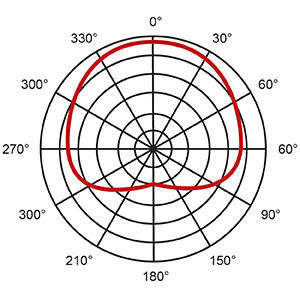

Polar Pattern: Uni-directional
Frequency Response: 30Hz-18 kHz
Sensitivity: 13mV/Pa
Output Impedance: 100±30% (at 1 kHz)
Self Noise: 20dB A
Max. Input SPL : 135dB (at 1kHz ≤1% T.H.D)
S/N Ratio: 74dB
Power Requirement: 9V-52V Phantom Power

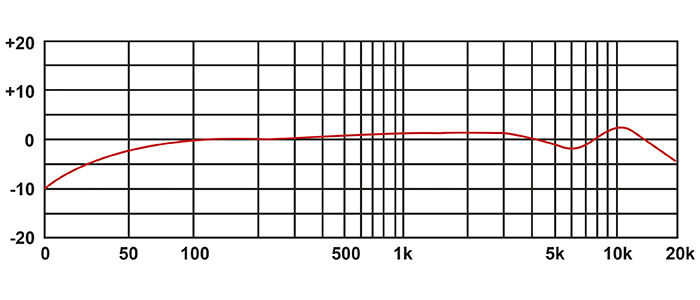

Frequency Response Graph:
